metal baling press machine

hydraulic steel iron scrap baling press machine-
scrap baling press for mild steel,metal,iron scrap,stainless steel

baling machine video

CLICK ON YOU TUBE ICON FOR WATCHING ALL BALING PRESS MACHINE WORKING VIDEO

steel iron scrap baling press machine is used for pressing scrap generated from all soft scrap which we used in daily life like and can easily be sold out when its not in use.

Double Action Ejector – (scrap press from two side with the help of two cylinder)

machines are unique in their class with hydraulic mechanical ejection system. To provide best performance it is equipped with 4 cylinders. It is used in industry to produce bale ranging from 30 Kg to 60 Kg. and above. We provide diversity in this machine having 4 configuration to suit clients of all need. Please have a look at the machine and available configurations.

need rope to tie a bale in double action machine for carton/paper/corrugated boxes etc

S. No. Specification Sh-001 Sh-002 Sh-003 Sh-004
1 Container Box Size (inch) 20″x 18″x 56″ 22″x 20″x 56″ 22″x 22″x 57″ 24″x 22″x 57″
2 Pressed Bale Size (inch) 12″ x 18″ 12″ x 20″ 13″ x 22″ 13″ x 24″
3 Pressed Bale Weight (Kg)approx. 15-25(in ms scrap) 20-40(in ms scrap)





35-60(in ms scrap) 45-70(in ms scrap)
4 Electric Motor (HP) 20 20 25 25
5 Pressing Scrap Time (second) 35-40 40-45 45-50 50-55
6 Production/Shift (tons) 6-8 8-10 10-12 12-14
7 Oil Tank Capacity (Liter.) 700 700 700 700

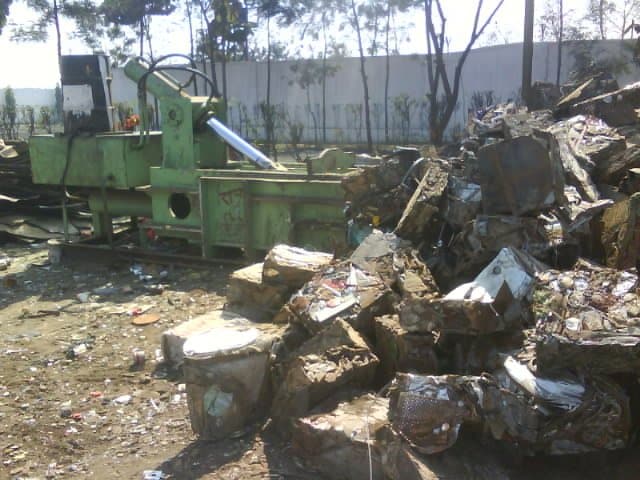

hydraulic scrap Triple Action Mini Jumbo for pressing metal/iron/steel/carton/waste paper/carton/aluminium etc

hydraulic Triple Action Mini Jumbo(scrap press from three side with the help of three cylinder) is a medium category machine equipped with only three cylinders and is perfect and efficient for producing bales of medium weight ranging from 25 Kg to 75 Kg. With an average baling time of only 60-70 seconds it is fastest in its segment and no need of rope to tie a bale in paper segment. We have 4 configurations available in different sizes meant for satisfying needs of all kind.

No need of rope to tie a bale in triple action machine for carton/paper/corrugated boxes.



Sl. No. Specification Sh-783 Sh-784 Sh-785 Sh-786
1 Container Box Size (inch) 20″x 20″x 50″ 22″x 22″x 55″ 25″x 24″x 57″ 25″x 30″x 60″
2 Pressed Bale Size (inch) 8″ x 8″ 12″ x 12″ 14″ x 14″ 16″ x 16″
3 Pressed Bale Weight (Kg)approx. 20-25(in ms scrap)10-20 25-35(in ms scrap) 35-50(in ms scrap) 45-70(in ms scrap)





4 Electric Motor (HP) 25 25 30 30
5 Pressing Scrap Time (second) 45-50 50-55 55-60 60-80
6 Production/Shift (tons) 8-10 10-12 12-14 14-16
7 Oil Tank Capacity (Liter.) 700 700 800 1000

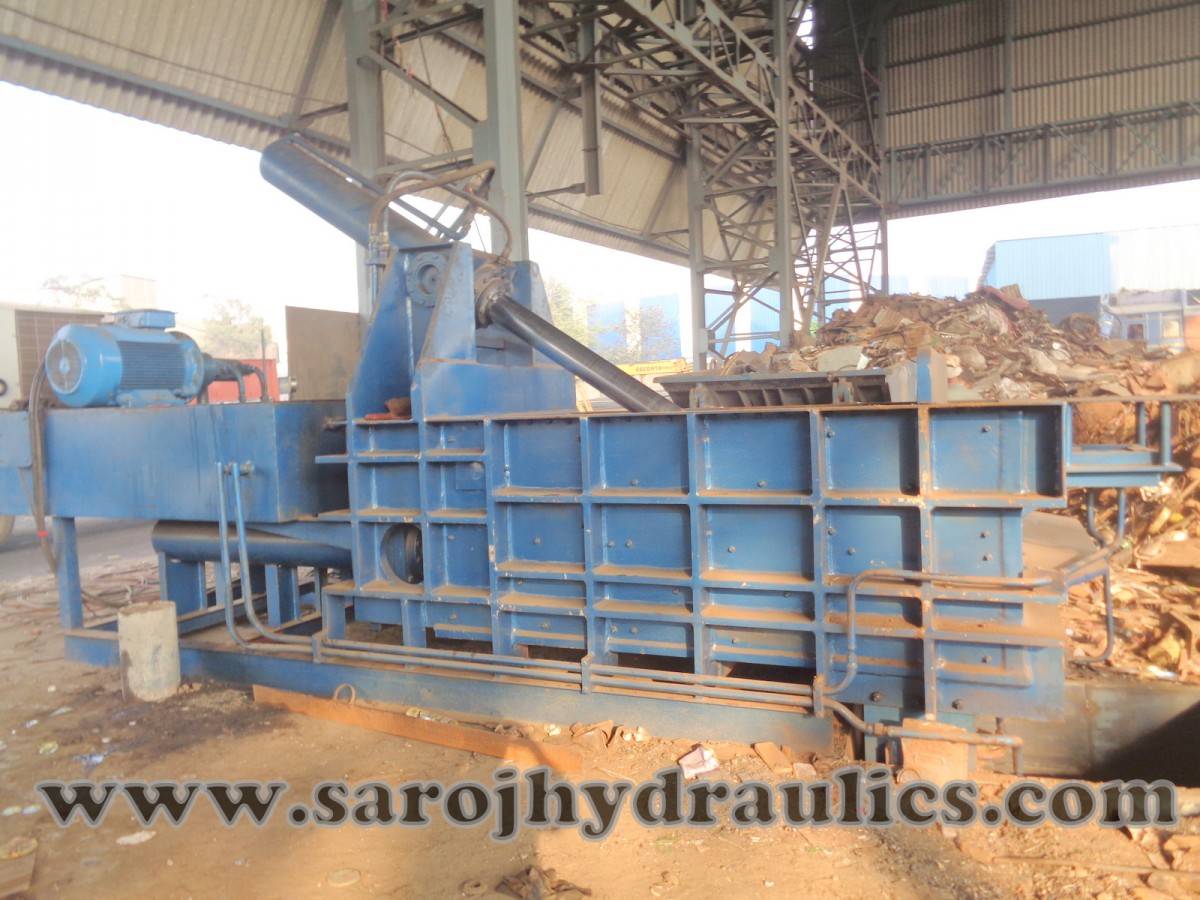

Triple Action Jumbo for pressing metal/iron/steel/carton/waste paper/carton/aluminium etc

Triple action jumbo(scrap press from three side with the help of three cylinder) is one of the heavy machine in this category meant for fast and efficient working. Equipped with seven cylinders it receives the power required for smooth functioning and is able to produce Bales in the range of 80 Kg to 400 Kg IN MS SCRAP, We have 2 models available for the machine.

steel baling press machine

S.NO.

MODEL NO.

SH-1001

(Automatic)

1.

Scrap Containing Box Size

40”x48”x84”

2.

Pressed Bale Size

20”x20”

3.

Pressed Bale Weight (Kg)

Depends on pressing material,nature,density and its quantity

200-400(M.S SCRAP)

In this bale weight it is difficult to give 5-6 ton production

4.

Electric Motor (HP)

60X2

5.

Pressing Scrap Time (second)approx

90-120

6.

Oil Tank Capacity (Ltr)

1800

7.

Main cylinder force

2pcs – 120 tons each x 2

8.

Top cylinder force

2pcs – 60 tons on each cylinder

9.

Side cylinder force

200 tons

10.

Ejector cylinder force

20 tons

11.

Warrantee

1 Year from the date of invoice

12.

Working pressure

3300PSI

13.

Delivery time against advance

8 weeks from the date of advance credited in our account

14.

Provided

Heat Exchanger (chiller) capacity 2 tons- 2 unit

·         Hydraulic Hoper System(OPERATE MANUALLY)

·         Hydraulic Bale Remover

·         Tamper plate

·         Shearing blade

·         DOUBLE MAIN CYLINDER

·         Starter

·         Main switch

·         ALL CYLINDER SEAL SET

·         KEY SET

·         Fully automatic plc operated

·         Hose pipe – 1pcs

·         Pressure guage – 1pcs

·         Filter – 2pcs

·         Limit switch-honey well

·         Valve-parker

·         Electric Siemens

·         Oil seal – kastas

·         Weight of machine – 23 ton approx

                             Pump – plunger pump






 https://www.youtube.com/watch?v=Yn3v-B2sR4U
